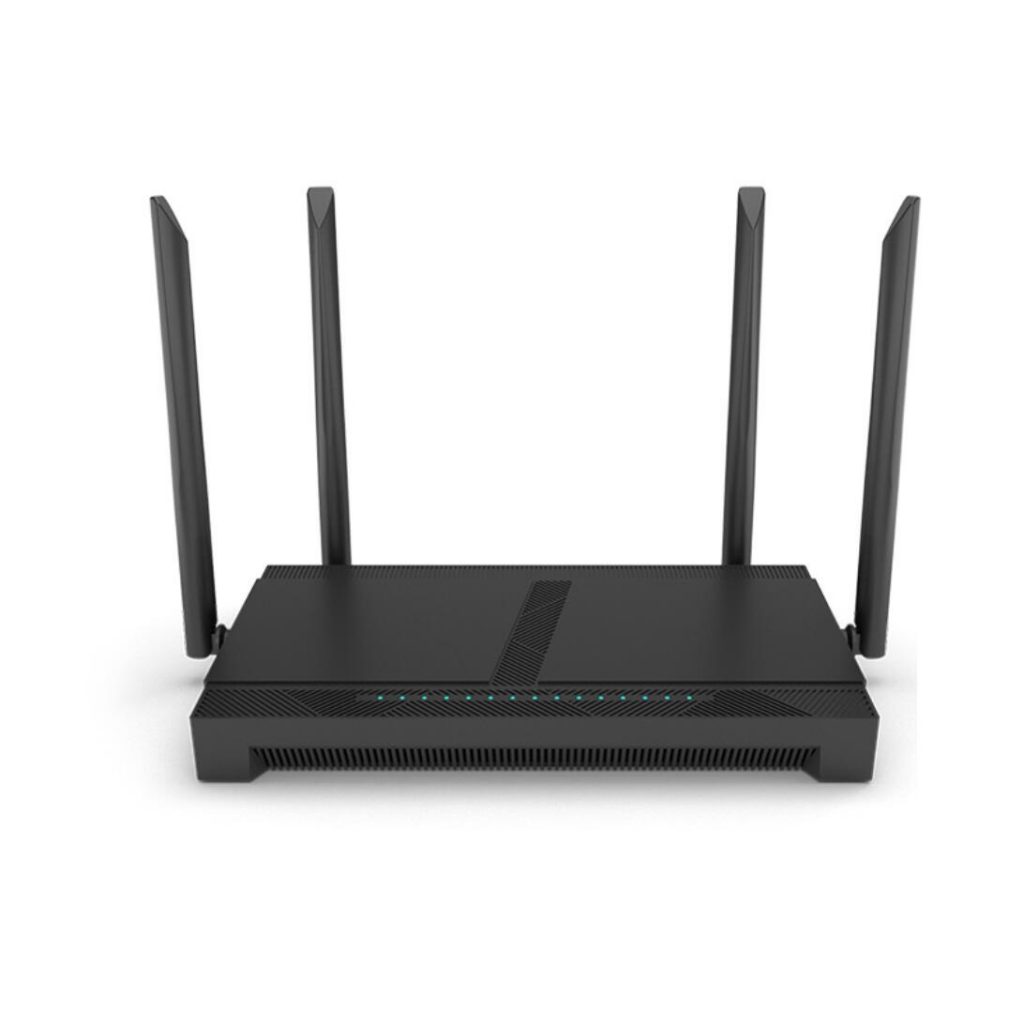

You are here: Home» PON» AX3000 GPON HGU


2021-04-15 21:20

Raw Speed 40{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734} Faster

Blazing Fast Wireless Speed

OFDMA uses your time and frequency more efficiently

MU-MIMO that works for both uploads and downloads

BSS Coloring

Dual-Core Processor for Faster Processing



GPON StandardsITU-T G.984
Distance20Km Max
Data RatesUpstream:1.25Gbps, Downstream:2.5Gbps
Wireless StandardsIEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
Signal Rate5 GHz: 2402 Mbps(802.11ax), 2.4 GHz: 574 Mbps(802.11ax)
Operation Frequency2.4GHz & 5GHz
Wireless SecurityWEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
VOIP StandardsSIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711


Interfaces1 x SC/APC GPON Port, 4 x 10/100/1000Mbps LAN Port, 2 x FXS Port, 1 x USB3.0
ButtonsPower ON/OFF Button, WPS/WiFi Button,Reset Button
Power SupplyDC 12V 2A
Antenna4 x 5dBi fixed antennas
Dimensions (W X D X H)232 x 124x 31mm

Software Features

WAN TypeDynamic IP/Static IP/PPPoE
DHCPServer, Client, DHCP Client List, Address Reservation
Quality of ServiceWMM, Bandwidth Control
Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
VPN802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Access ControlParental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall SecurityDoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
VOIP FeaturesTwo RJ-11 FXS ports for connecting to analog telephones
Call forwarding, Call waiting, Call block, 3-way conference call, etc.
ManagementAccess Control, Local Management, Remote Management
Internet ProtocolIPv4, IPv6


Operating Temperature0°C~40°C (32°F~104°F)
Storage Temperature-40°C~70°C (-40°F~158°F)
Relative Humidity10{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing
Storage Humidity5{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~95{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing

Package Contents

1 x GPON Router
1 x Quick Installation Guide
1 x Power Adapter
