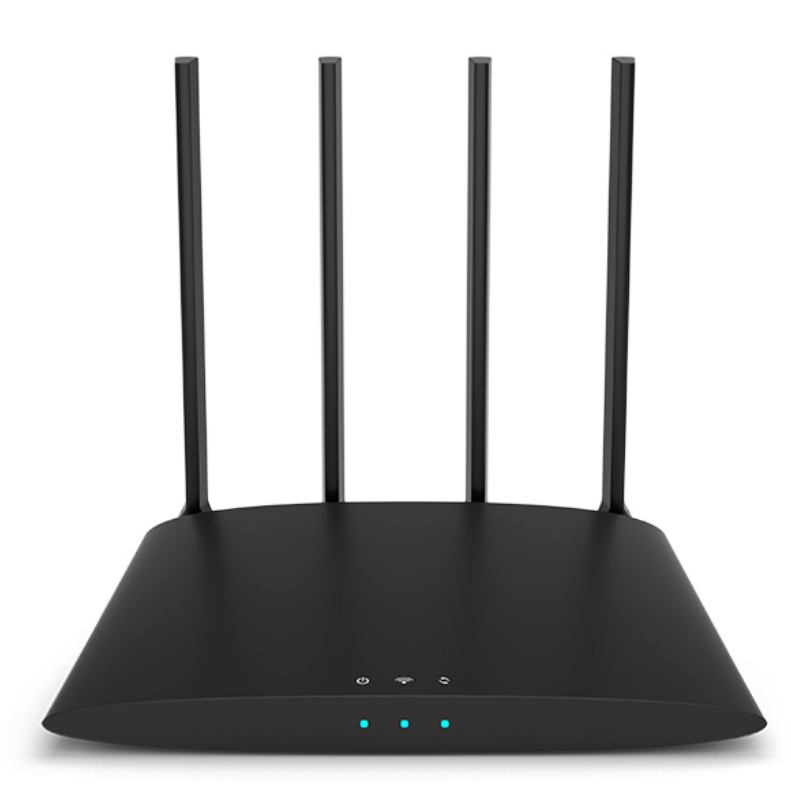

AC1200 Gigabit Wi-Fi Router

2021-11-10 20:25

Supports 802.11ac, Compatible with 802.11 b/g/n/ac products.
Dual band – for combined wireless speeds of up to 1.2Gbps at 2.4GHz and 5GHz band concurrently.
Supports PPTP/L2TP VPN protocols.
4*5dBi external antennas provide maximum Omni-directional wireless coverage and reliability.
QoS prioritizes network traffic by assigning bandwidth classes, ensuring reliability of essential services, and effectively avoiding network congestion.
Parental Controls allow you to manage network usage and access for everyone on your account, protecting your children from inappropriate online activities.
Guest Network Access – provides secure Wi-Fi access for guests sharing your home or office network.

Specifications

General

Wireless Standards	IEEE802.11a/n/ac,5GHz IEEE802.11b/g/n,2.4GHz
Signal Rate	5GHz:Up to 867Mbps 2.4GHz:Up to 300Mbps
Operation Frequency	2.4GHz and 5GHz
Reception Sensitivity	5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm 2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm
Wireless Security	WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Hardware Standards

Interface	1 x 10/100/1000Mbps WAN Port 3 x 10/100/1000Mbps LAN Port
Antenna	4 x 5dBi external dual band antennas
Button	WPS/ Reset Button
Power Supply	DC 12V1.0A
Dimensions	180 x 145 x 29mm

Software Features

WAN Type	Dynamic IP/Static IP/PPPoE
DHCP	Server, DHCP Reservation，Static Route，DDNS
Quality of Service	Download / Upload Speed control
Port Forwarding	Virtual Server, Port Triggering, DMZ
VPN Pass-Through	PPTP, L2TP
Access Control	Parental Control, Host List, Access Control, Rule Management
Firewall Security	SPI Firewall, IP and MAC Address Binding
Management	Access Control, Local Management, Remote Management， TR069
Internet Protocol	IPv4

Environment

Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing
Storage Humidity	5{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}~90{a4a02a3b92dfb2ca8171dbe6857d99b7828ff9f00cf9efb88ab97b01bfae3734}, non-condensing

Package Contents

1* WR743GR Wireless Router
1* Ethernet Cable
1* Power Adapter
1* Quick install guide
